商品の詳細

Created with Pixso. 家 Created with Pixso. プロダクト Created with Pixso.
隔たり カーテン
Created with Pixso.

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym

ブランド名: FLYON
モデル番号: スポーツホール間仕切りカーテン
MOQ: 100
価格: 11,887-13,122円
詳細情報
製品の説明
詳細情報
起源の場所:
広東省、中国
厚さ:
2.3mm
材料:
高強度ポリエステル繊維またはガラス繊維生地+PVC
モーター電圧:
AC220v
モーターの種類:
チューブラータイプ
モーター出力:
100 Nm
運動径:
3フィート
スタッキング寸法:
50 cm
動作速度:
毎分7.5メートル
最大長さ:
20m
最大面積:
125㎡
モーターの同期:
大型カーテン用の 2 つのモーター
制御オプション:
キースイッチまたはワイヤレスリモコン
過負荷保護:
自動サーマルリセット
シームタイプ:
横方向の縫い目
ボトムチューブ:
パッド入り
ハイライト:

7.5m per minute lifting speed Divider Curtain

,

Customizable color Gym Divider

,

2 years warranty Sports Hall Curtain

製品の説明
Custom Indoor Fold-Up Multifunctional Sports Hall Gym Divider Curtains

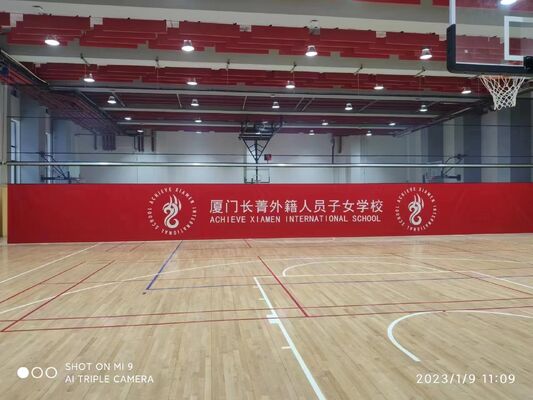

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 0
The Center Roll Divider features a streamlined overhead design for gymnasiums, eliminating hoist cables, straps, and overhead support rollers while maintaining minimal stack height.
As the aluminum drive tube rotates, it moves the curtain upward, neatly rolling both top and bottom sections compactly to the ceiling. This innovative design eliminates wear points common in other dividers and enables the Center-Roll to operate twice as fast as standard curtains.
The assembly operates extremely quietly, includes automatic overheating protection, and is permanently lubricated for maintenance-free operation. When directly attached to the roof structure, this divider maintains a stack dimension within 50cm of the ceiling or overhead support structure for maximum clearance.
The fast folding action operates at 7.5 meters per minute. Available in solid and mesh combinations, all solid, or all mesh finishes to suit various requirements.
Product Specifications
Item Value
Place of Origin China
Product Name Sports Hall Dividing Curtains
Color Customizable
Brand Flyon
Material High-strength polyester fiber or glass fiber fabric + PVC
Suitable Places Gymnasium, schools, basketball courts
Motor System Details

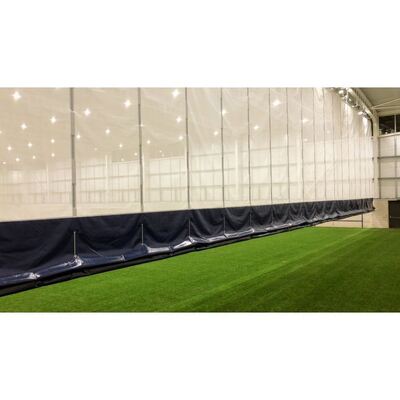

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 1
Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed inside the horizontal batten tube. Motor is equipped with up and down push-button type limit switches and automatic reset thermal overload protection.
Curtains up to 125 m² or 20 m long use single motor. Larger curtains use two synchronized motors. Includes key switch operation standard. Also available with wireless remote control.

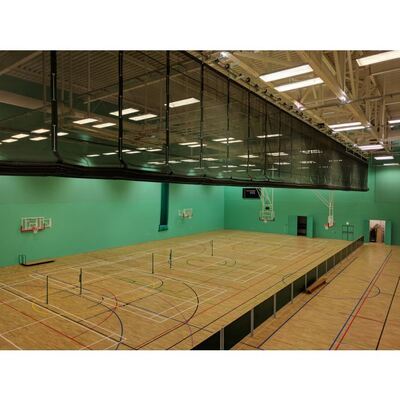

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 2
Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5m per minute.

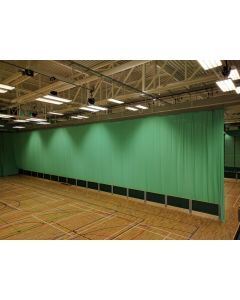

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 3
Available Configurations

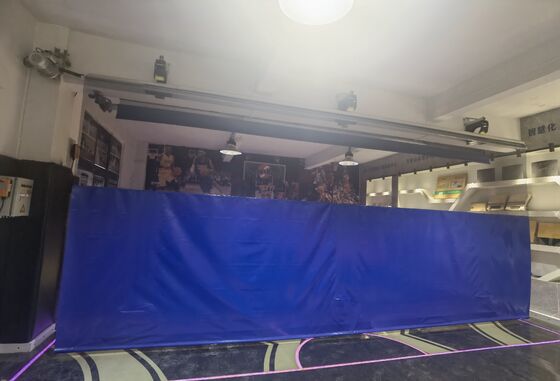

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 4
  • Solid and Mesh: Combination with padded bottom tube
  • All Solid: Complete solid construction with padded bottom tube
  • All Mesh: Full mesh design with padded bottom tube
Available in a wide variety of vinyl and mesh colors to match your facility's aesthetic requirements.

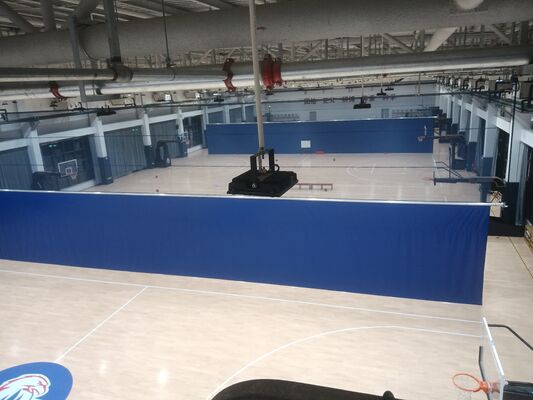

Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 5
Construction Features
Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 6
Horizontal seams allow smooth rolling action for reliable operation and extended service life.
Quality Certifications
Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 7 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 8 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 9
Packaging & Shipping
Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 10 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 11 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 12 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 13 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 14 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 15
Manufacturer Profile
Fylon has specialized in EPDM and SBR granules production for more than ten years, bringing extensive manufacturing expertise to our sports facility products.
Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 16 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 17 Customizable Color 7.5m per Minute Lifting Speed Divider Curtain with 2 Years Warranty for Sports Hall and Gym 18
Frequently Asked Questions
What is your delivery time?
We have flexible delivery time. For in stock and mass production, it is about 5 working days and 25-35 working days respectively.
Can you provide warranty?
Yes! We provide 5 years' quality warranty and 10 years' backup support.
Can I get your samples?
Yes! Flyon Sports offers free samples for our customers, about 3 days for preparation.
Do you provide OEM service?
Yes! We provide OEM and ODM service for custom requirements.
Contact Information
Website: www.flyonsports.cn
Address: 406 Room B#2013 Creative Marker Park, Lijia Road 108th LongGang District Shenzhen, China
Whatsapp: +86 13534071985
Email: Info@flyonsport.com
