商品の詳細

家プロダクト

High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

ブランド名:	Flyon
モデル番号:	分割カーテン
MOQ:	50平方メートル
価格:	$46-98/sqm
支払条件:	T/T、Western Union、L/C
供給能力:	> = 50000平方メートル/月

詳細情報

製品の説明

詳細情報

起源の場所:

中国

証明:

SGS/GB-18586

材料:

ファブリック

色:

お客様のご要望

火率:

GB-8624

引裂き抵抗:

GB/T 3917.3-2009

利点:

耐火性、涙抵抗、環境に優しい、高強度

制御システム:

電気システム

パッケージの詳細:

木箱

供給の能力:

> = 50000平方メートル/月

ハイライト:

High Strength Dividing Curtain

Fireproof Divider Curtain

Electric Control System Partition Curtain

製品の説明

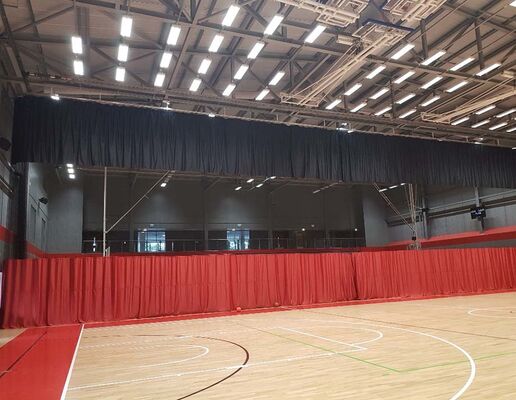

High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

Special discounts available for new and existing customers. Contact us for specific pricing.

Single Curtain System Specifications

Product Name	Dividing Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Installation Safety Requirements

A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall
A safety clearance of at least 15 cm should be left on the side without motor drive system
At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground

Product Advantages

Double layer curtain with high quality PVC for superior sound absorption
Integrated netting sections allow natural light transmission
Complete system includes all necessary materials and segments with aluminum truss carrier structure
User-friendly operation with multiple configuration options available
Complete system provided with tested and certified components

Electric and Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.

Packing and Shipment
