Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports

ブランド名:	Flyon
モデル番号:	分割カーテン
MOQ:	50平方メートル
価格:	46-98 dollars per sqm
支払条件:	T/T、ウェスタンユニオン
供給能力:	> = 50000平方メント/月

製品の説明

詳細情報

起源の場所:

中国

証明:

SGS/GB-8624 (B2 level)

材料:

PVC/高強度ファブリック

色:

カスタマイズされた

パターン:

カスタマイズ可能

環境性能:

GB-18586

パッケージの詳細:

標準パッケージ

引裂き抵抗:

GB/T 3917.3-2009

パッケージの詳細:

木製の箱

供給の能力:

> = 50000平方メント/月

ハイライト:

Electric Control System Divider Curtain

,

High Strength Fabric Partition Curtain

,

Customizable Color Dividing Curtain

製品の説明

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports

Special discounts available for new and existing customers. Contact us for specific pricing.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Options

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 0

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 1

Available Models

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 2

Installation Requirements

• A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall.

• A safety clearance of at least 15 cm should be left on the side without motor drive system.

• At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground.

Electric and Control System

High-performance drum motor (220V, 450W, 120N/m) with internal planetary gear reducer

Integrated up and down brake limiter with push-button limit switch

Automatic reset and thermal overload protection system

Operation is stable and reliable with components integrated into middle coiling drum

Product Advantages

Double curtains made of high-quality PVC for superior sound absorption

Partial mesh design allows natural light transmission

Complete system includes all required materials, parts, and aluminum truss load-bearing structure

Environmentally friendly, tear-resistant, high strength, and fireproof materials

Easy to use system available in various customization options

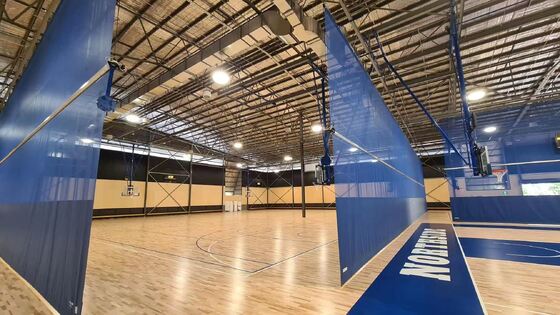

Project Gallery

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 3

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 4
